How to Read Offshore Structure for Pelagic Fish
Blue water can look like a featureless desert from the cockpit — but beneath the surface, the offshore world is shaped by invisible walls, highways, and feeding stations. Learning to read those features on a chart, a sonar screen, and with your own eyes is the single biggest skill jump a new offshore angler can make before their first blue-water trip.
Why Offshore Structure Matters for Pelagic Fish
Pelagic species — mahi-mahi, wahoo, yellowfin tuna, blue and white marlin — are not random wanderers. They track food, and food tracks structure. Upwellings, current deflections, and depth changes all concentrate baitfish, and baitfish concentrate predators. The offshore angler's job is to find those concentrations before the fish move on.
Unlike inshore fishing where structure is often visible — a dock piling, a grass flat, a channel edge — offshore structure is almost entirely subsurface or expressed indirectly in water color, temperature, and sea surface behavior. That's what makes chart reading and sonar literacy so valuable: they give you X-ray vision into a blue-water ecosystem that is otherwise invisible from the bridge.
Reading Charts: Ledges, Canyons, and the Continental Shelf

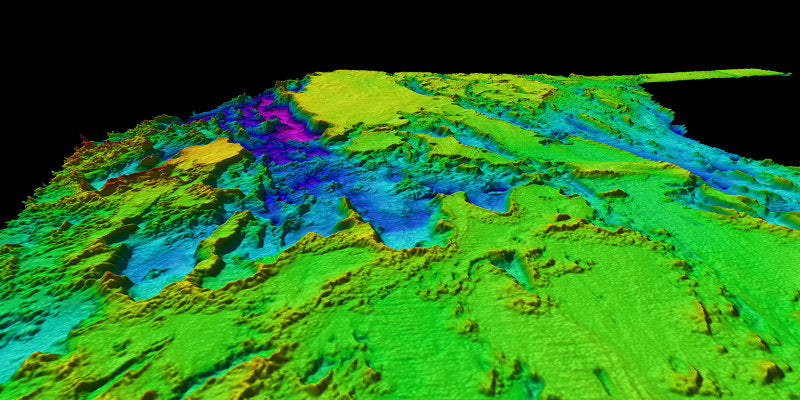

The most important thing a bathymetric chart tells you is where the seafloor changes rapidly. Any steep contour line transition — a ledge, a canyon wall, a shelf break — is a structural feature worth investigating. Here's what to look for:
The Continental Shelf Break. This is the most significant structural boundary in offshore fishing. Where the relatively shallow shelf (typically under 600 feet) drops away into deep oceanic water, currents are forced upward. That upwelling brings cold, nutrient-rich water to the surface, which drives plankton blooms, which drive bait, which drive fish. The 100-fathom curve on your chart is a starting point for almost every offshore trip east of the Mississippi.
Submarine Canyons. Cut deep into the shelf by ancient river channels and erosion, canyons like the Baltimore Canyon, Norfolk Canyon, and Hudson Canyon on the Atlantic, or DeSoto Canyon in the Gulf, are premium blue-water addresses. Canyon walls create strong upwellings and eddies. The heads — where the canyon transitions to the shelf — are especially productive and are worth marking on your plotter before you leave the dock.
Ledges and Humps. Any abrupt depth change — even a 20-foot rise or drop in 600 feet of water — can concentrate bait. Mark ledges with tight contour spacing on your chart and run perpendicular to them to maximize your time in the productive transition zone.
How to Build Your Own Chart Layers. Tools like Navionics SonarChart and C-MAP Genesis allow you to layer user-contributed depth data over standard chart data, often revealing ledges and humps that don't appear on NOAA's standard nautical charts. Download the most current chart tile for your offshore grounds the night before every trip.
Using Sonar to Confirm Structure Beneath You
Charts tell you where structure should be. Sonar tells you what's actually there — and whether fish are using it. Offshore sonar reads differently than the bottom-painting you may be used to inshore.
CHIRP vs. Traditional Sonar. CHIRP (Compressed High-Intensity Radiated Pulse) sonar sends a swept range of frequencies and produces dramatically sharper bottom definition than single-frequency units. At offshore depths, CHIRP is the standard — it will distinguish a hard ledge bottom from a soft mud flat, and will mark bait clouds as discrete marks rather than a wash of noise.
Marking Bait and Fish at Depth. Over the shelf break and canyon walls, look for arches or dense clouds suspended well above the bottom. Skipjack and frigate mackerel schools show up as tight balls mid-water. Flying fish, squid, and juvenile mahi often scatter across the upper 50 feet and may not show on sonar at all — but their presence tells you the right predators are nearby.
Bottom Composition Clues. A hard, high-return bottom signal (bright, thick line) often indicates rock, coral, or consolidated sand — prime real estate for bait concentrations. A soft, thin return is soft bottom with less holding power for bait. For more on reading sonar displays offshore, see our guide: Unlock the Depths: Sonar Tips for Better Fishing.
Reading Water Color and Temperature Breaks
The ocean's surface tells its own story if you know how to read it. Water color and temperature are expressions of what's happening beneath — current boundaries, upwellings, and mixing zones — and they're visible to the naked eye as well as to satellite sensors.
Blue vs. Green Water. Offshore anglers talk about "blue water" for a reason. Warm, oligotrophic (low-nutrient) blue water is where open-ocean pelagics live. Where that blue transitions to green — a sign of cooler, nutrient-rich water — you have a color edge. That edge is one of the most consistent mahi-producing features in the Atlantic and Gulf. Pull SST and chlorophyll charts the night before your trip and mark the color-change line on your plotter.
Temperature Breaks. A 2–4°F drop in sea surface temperature over a short distance is a temperature break — a boundary between two water masses. Baitfish stack along these thermal boundaries because the temperature differential often co-occurs with current shear, plankton concentrations, and structural upwelling. Wahoo in particular are notorious for holding tight to sharp temperature breaks. Running the edge of a break rather than blindly trolling open water can triple your productivity.
Rips and Current Lines. Where two currents collide or where wind-driven surface water converges, you get a rip line: a visible surface disturbance with foam, debris, and sometimes a clear color change. These convergence zones are natural bait traps. Slow down and run along — rather than through — any rip you encounter.
For a deeper dive into reading SST and chlorophyll data, see our article on SST Chlorophyll Edges: How to Read Pelagic Hot Spots Like a Pro.
Weed Lines: The Most Obvious Structure in Blue Water
Sargassum weed lines are the most angler-friendly structure in the blue-water environment — they're visible, they concentrate bait, and they hold mahi-mahi at almost any time of year when the water temperature is right.
Any floating debris or weed accumulation is an attractor. Juvenile fish shelter from predators under the mat. Larger fish — triggerfish, amberjack, and most importantly mahi — work the edges of the mat picking off the smaller fish. The rule is simple: find the weed, work the edges slowly, and drop back a pitch bait or a live ballyhoo along the shadow line beneath the mat.
Weed lines are especially productive when they form on a temperature break or color edge — a "two-fer" in offshore scouting terms. When a green-to-blue color transition lines up with a visible sargassum windrow, that intersection is the first place to deploy baits. For targeting mahi specifically along these features in summer, see How to Find Mahi Offshore: Reading Current Edges, Temperature Breaks, and Weed Lines Mid-Summer.
Putting It All Together: A Pre-Trip Scouting Workflow
The best offshore trips are won at the nav station the night before. Here's a simple pre-trip workflow for a new blue-water angler:
1. Pull a bathymetric chart and identify the 100-fathom curve, any canyon heads, and prominent ledge transitions within range. Mark waypoints on your plotter.
2. Check SST and chlorophyll data from a satellite service (SatFish, Hilton's Realtime Navigator, or the NOAA CoastWatch browser). Identify the blue-green color transition and any visible temperature break lines. Mark the edge.
3. Look for structure-edge intersections. Where a canyon head, ledge, or shelf break lines up with a temperature break or color edge, that intersection is your primary waypoint. Multiple structural features overlapping in space dramatically increase the probability of fish concentration.
4. Plan your trolling direction. Work perpendicular to ledges, and parallel to weed lines and color edges. Cover ground efficiently by running the edge rather than crossing through random open water.
5. Trust your sonar underway. Use your chart as a roadmap, but let sonar confirm what's actually there. A ledge that shows bait stacked on sonar is worth working harder than a clean-looking ledge with nothing on it.
Reading offshore structure is a learnable skill that compounds over time. Every trip adds a new waypoint, a new observation about how your local grounds respond to current patterns and seasonal SST shifts. The anglers who consistently put fish in the box aren't the ones with the biggest boats — they're the ones who did their homework the night before.
Outbound resources: Navionics Blog for chart reading guides; NOAA Ocean Exploration: Multibeam Sonar for understanding how bathymetric data is collected.
